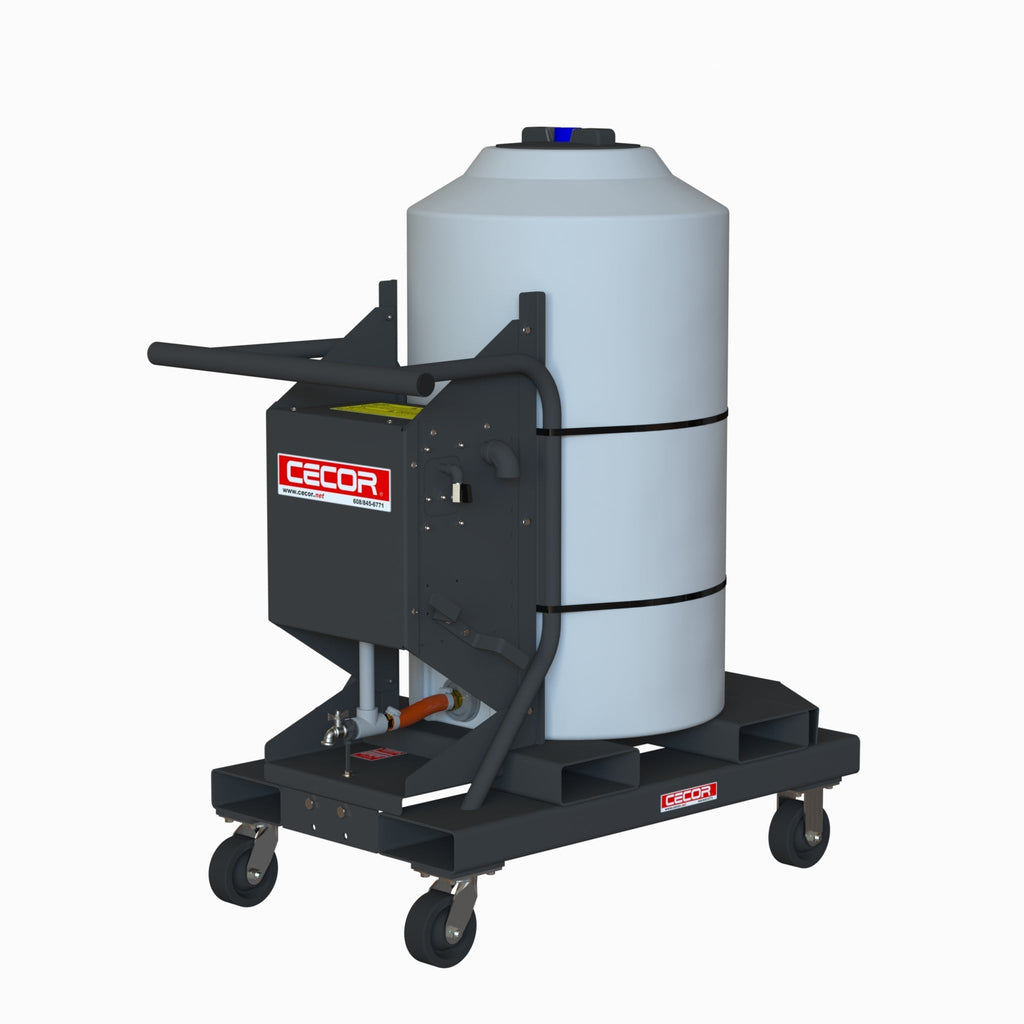

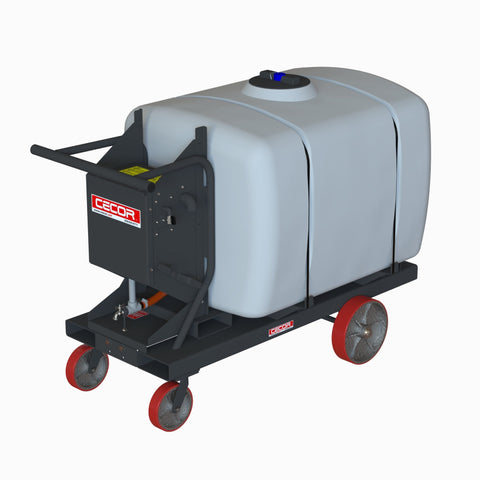

Cecor Air Operated Dispenser

Cecor's DA3 Air Operated Dispenser redefines industrial fluid management. This fully pneumatic mobile dispenser delivers up to 25 gallons per minute, providing precise and efficient fluid distribution while reducing waste and operator fatigue. Available in 65-gallon and 200-gallon tank sizes.

Handles both fresh and recycled metalworking fluid with equal ease — from sump top-offs to full machine tool refills. Pairs seamlessly with a Cecor coolant mixing station for a complete fluid replenishment workflow.

Key Features

• Air-operated diaphragm vacuum pump — no electricity required
• Dispenses up to 25 gpm (95 lpm)
• Handles both fresh and recycled metalworking fluid
• Full-flow shutoff nozzle for precise operator control
• Low air demand: operates at as little as 20 PSI
• Quality casters for easy shop-floor mobility (PTL transport base)
• 1" ID x 16 ft dispense hose and 1/4" x 20 ft air hose included
• 3/4" spigot drain

Specifications

• Air Requirements: 20–100 PSI
• Dispensing Speed: up to 25 gpm (95 lpm)
• 65 gal dimensions: 47" x 28" x 56"
• 200 gal dimensions: 67" x 28" x 51"

Made by CECOR, Belleville, WI USA. Compatible with new metalworking fluid, recycled coolant, and cutting oil.
