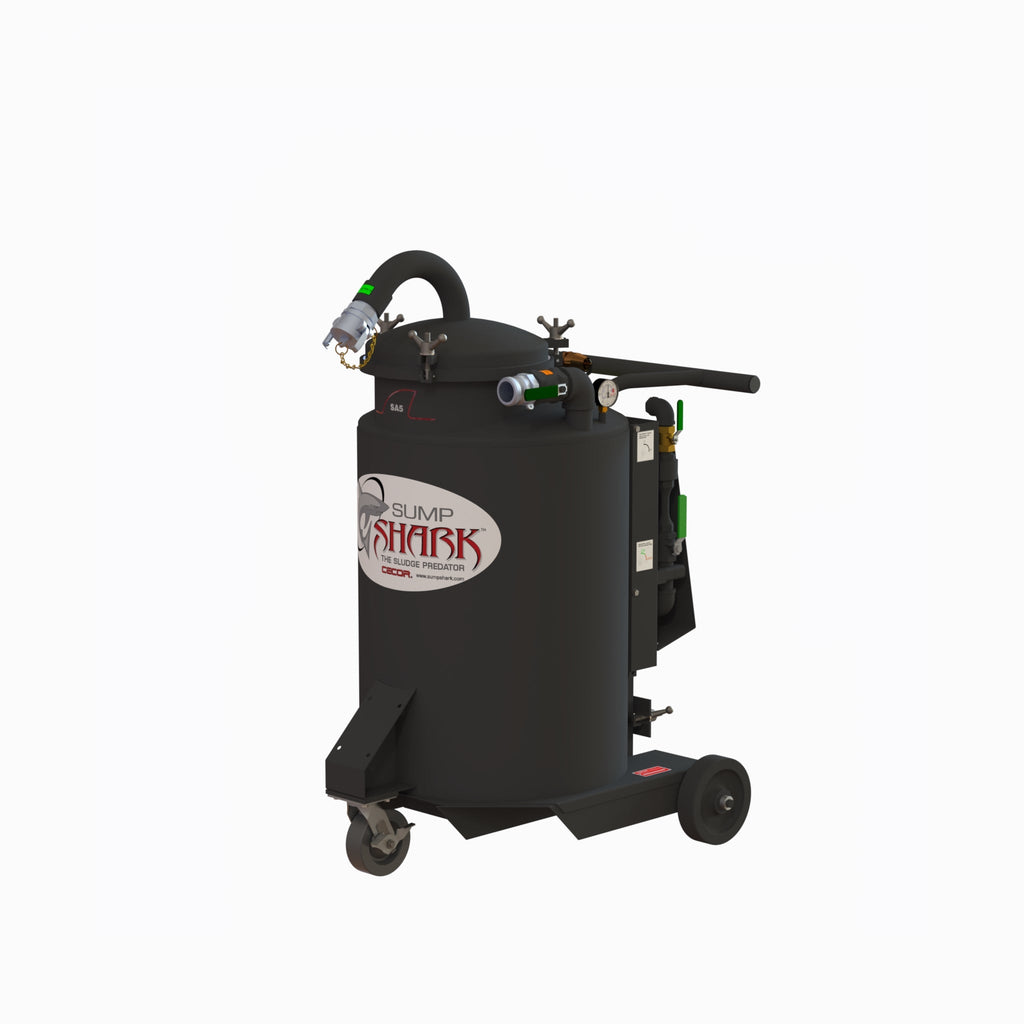

Cecor SA5 Air Powered Sump Cleaner

The Cecor SA5 Air Powered Sump Cleaner delivers effortless sump cleaning with no electrical outlet required. Its air-operated venturi pump provides the highest suction lift in the Cecor lineup, rapidly removing metalworking fluid, chips, and sludge in minutes. Available in 60-gallon and 300-gallon tank sizes.

Regular cleanings prevent compacted sludge buildup, reduce sump odors, and help extend the life of your metalworking fluid — reducing fluid costs, waste disposal, and employee absenteeism from skin issues related to bacteria in dirty coolant.

Key Features

• Air-operated venturi pump — no electricity required
• Industry-leading suction lift: up to 26" Hg (350" / 9 m of water column)
• Suction & discharge speed: 70 gpm with 1-1/2" hose; 110 gpm with 2" hose
• Pump-in and pump-out capability
• Mechanical overflow protection and vacuum/pressure gauge included
• Flush-to-bottom cleanout door with drain port
• Three cleaning tools included: straight nozzle, flexible nozzle, and flared nozzle
• Oil-resistant PVC hose with quick-disconnect couplers

Air Requirements

• Line Pressure: 75–120 PSI | Volumetric Capacity: 53–80 CFM
• Minimum shop line size: 3/4" | Air line to unit: 3/8"–1/2"

Specifications

• Suction Lift: 26" Hg / 350" (9 m) water column
• Discharge Pressure: 6 PSI (backup valve; rupture disc at 15 PSI)
• Standard Filter: F10 (1 cu. ft.) — filters 70–95% of solids

Made by CECOR, Belleville, WI USA. Compatible with metalworking fluid, coolant, cutting oil, chips, and sludge.
